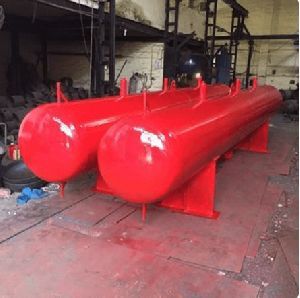

Ammonia Pressure Vessel



We supply best quality Ammonia Pressure Vessel. The Ammonia Pressure Vessel is manufactured in line with the industry standards. Ammonia Pressure Vessels that we offer are made of tough materials resistant to chemical attack and temperature extremities. The specification and technical details of our Ammonia Pressure Vessel are given below:

Receiver
Receivers are available in 26 standard models with an internal gross volume of 4.4 to 329.1 cubic feet and a pump down capacity of 130 to 9740 pounds based on 80% of internal volume with liquid refrigerant at 90deg F. Ammonia or fluoridated receivers are made from carbon steel shell and carbon steel dished ends. Shells upto 300 mm (12") are made from seamless or welded pipes and above 300 mm, they are made from rolled plates.

Standards
All receivers are manufactured and tested as per the following standards:

  • ASME Sec. VIII
  • ASME Sec. XI
  • IS:2825


Range
The diameter varies from 200mm (8") to 1200mm (48") and the lengths vary from 1.5 Meters (5') to 7.5 Meters (25').

Oil Separator
Our scrubber type oil separators are designed for vertical mounting in the compressor discharge line of commercial and industrial refrigeration systems to separate entrained oil from the discharge gas and a automatically return this oil to the compressor crankcase. Oil separators are made from carbon steel shell and carbon steel dished ends. Shells upto 300 mm (12") are made from seamless or welded pipes and above 300 mm. They are made from rolled plates. All oil separators are manufactured and tested as per the following standards:

  • ASME Sec.VIII
  • ASME Sec.XI
  • IS:2825


Range
Two types of oil separators are available, one with automatic oil return and other without automatic oil return. The diameters vary from 200 mm (8") to 600mm (24") and lengths vary from 1 meter (3') to 1.5 Meter (5').

Vertical Accumulator
These are made from Carbon Steel / low temperature plate shell and carbon steel/low temperature steel dished ends. Shells upto 300mm (12") are made from seamless / welded pipes and above 300 mm are made from rolled plates.

Standards
All accumulators are manufactured and tested as per the following standards:

  • ASME Sec. VIII
  • ASME Sec. IX
  • IS:2825


Range
The diameters range from 250mm(10") to 600mm (24") and lengths vary from 1 Meter(3") to 1.8 Meter(6").

Horizontal Accumulator
These are made from carbon steel / low temperature steel plate shell and carbon steel / low temperature steel dished ends. Shells upto 300 mm (12") are made from seamless / welded pipes and above 300mm are made from rolled plates.

Range
The diameters range from 250mm (10") to 600mm (24") and lengths vary from 1 Meter (3") to 1.8 Meter (6").


Specifications

Type Pressure Vessels
Material Aluminium
Shape Cylinder Shape
Certification CE Certified
Color Available in Many Colors
Pressure 0-15bar, 15-30bar, 30-45bar
